Elbow

1. Raw Material Preparation:

Selection of high-quality materials (carbon/stainless/alloy steel) based on application requirements.

2. Forming:

For metal elbows: Hot forging or cold forming to shape the material into 45°/90°/180° configurations, ensuring precise radius and angle.

For plastic elbows: Injection molding for consistent dimensions and smooth interior.

3. Machining:

Precision machining of ends to match pipe schedules, ensuring tight fit for leak-proof connections.

4. Heat Treatment (Metal Elbows):

Annealing or quenching to enhance strength and corrosion resistance, critical for alloy and stainless steel variants.

5. Surface Treatment:

Carbon Steel: Painting, galvanizing, or anti-corrosion coating for harsh environments.

Stainless Steel: Pickling and passivation to preserve corrosion resistance.

6. Quality Inspection:

Dimensional checks, pressure testing, and non-destructive testing (NDT) to verify leak-proof performance and compliance.

7. Packaging:

Preparation for global shipping with protective materials.

Smooth Flow Transition:

Minimizes turbulence and pressure drop, optimizing fluid dynamics in piping systems.

High Strength & Durability:

Metal elbows withstand high pressure and temperature, suitable for industrial and oil&gas applications.

Corrosion Resistance:

Stainless steel, PVC/CPVC, and coated carbon steel elbows resist humidity, salt spray, and chemical erosion.

Leak-Proof Joints:

Precise machining ensures tight connections, preventing fluid leakage in critical systems.

Versatile Compatibility:

Works with various pipe materials and connection types, adapting to diverse project needs.

Climate Adaptability:

Performs reliably in extreme temperatures (desert heat, cold industrial environments) and humid/tropical conditions.

Our Pipe Elbows comply with international and regional standards for global project approval:

• International Standards: ASME B16.9, ASME B16.28, ASTM, DIN, EN, JIS
• Material Standards: ASTM A234 (carbon/alloy steel), ASTM A403 (stainless steel)
• Quality Certifications: ISO 9001, SGS, Material Test Certificates (MTC)
• Regional Compliance: SASO (Middle East), SONCAP (Africa), SNI (Indonesia), TIS (Thailand), BIS (India)
• All orders include compliance documents and pressure test reports for customs clearance.

Packaging

• Metal Elbows: Wrapped in waterproof film, packed in wooden crates or cartons, with foam padding to prevent scratches and deformation.
• Bulk Orders: Secured with steel straps on wooden pallets for stability during transit.
• Clear English labeling includes product type, size, angle, material, connection type, and batch number.

Shipping

• Lead Time: Standard orders (≤500 units): 12-20 working days; Bulk orders (＞500 units): 20-30 working days; Custom configurations: 15-25 working days.
• Logistics Partners: Maersk, CMA CGM, Aramex, and regional carriers for inland delivery.
• Delivery Coverage: Port-to-port, door-to-door for major cities, and delivery to manufacturing/construction sites.
• Global Reach: Supply to all regions except Europe and the US, with tailored shipping solutions for each market.

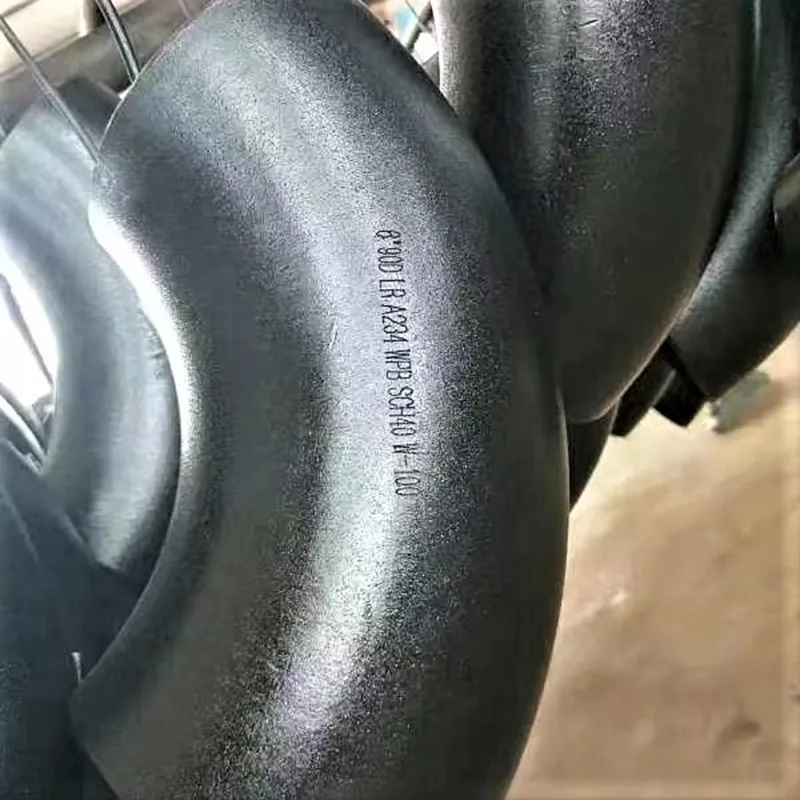

RFQ Question: Need 90° long radius carbon steel elbows for water pipelines—can they withstand tropical rains?

Answer: Our galvanized carbon steel elbows (ASTM A234 WPB) resist tropical humidity and rains. They’re Schedule 40 compliant, with leak-proof butt-weld connections.

RFQ Question: Can you supply custom-thickness alloy steel elbows for high-temperature industrial use?

Answer: Yes, we offer custom-thickness alloy steel elbows (ASTM A234 WP5) for high-temperature applications. They withstand extreme heat.

RFQ Question: What’s the warranty for brass elbows used in HVAC systems? Lead time for small orders?

Answer: Our brass elbows come with a 2-year warranty against manufacturing defects, ideal for HVAC refrigerant lines. For small orders (≤100 units), delivery takes 10-15 working days with threaded connections.

RFQ Question: Need 180° short radius elbows for oil pipelines—can they handle high pressure? Lead time?

Answer: Our carbon steel 180° SR elbows (ASTM A234 WPB) are rated for high-pressure oil pipelines. They meet ASME B16.9 standards, with pressure testing reports included. Delivery takes 16-22 working days.
